OUTDOOR PROJECTOR ENCLOSURES • 10K–50K LUMEN PROTECTION

Protect your projector from heat, dust, rain, and snow

Fully climate-controlled shell engineered for outdoor video mapping.

Outdoor Projector Enclosures

European engineering by Proietta — with North American sales, logistics, and specification support by Gobo Projections.

Download Spec Sheet (PDF) Request CAD Request Quote Dealer / Integrator Access

Landscape • Portrait • Stack / Multi-Portrait on X2 models (note: F50 also supports Stack; F20-X2 excludes Multi-Portrait) • Custom sizes & RAL colors • Optional AC module for hot climates

Used by Video Mappers Worldwide: For large-scale projection mapping across the U.S. — ask us for case studies and site photos.

Quick Specs

Construction: Fiberglass, aluminum, stainless steel
Monitoring: Bluetooth standard (temp, humidity, fan); optional Ethernet remote monitoring
Options: Any RAL color, custom sizing, UST lens accommodation (specify lens model)
Accessories: Poles (self-supporting or plinth), wall brackets, stacking frames, mirror kit for floor projection
Thermal: Active ventilation; optional high-capacity AC module with dust/sand filtration for extreme environments

Model Lineup — Standard (Non-X2)

Standard (non-X2) variants support the orientations listed below. For Multi-Portrait, select an X2 model.

Model	Internal Volume (W×H×D, in)	Weight (lb)	Cooling Max (W/A)	Heat/Dehum Max (W/A)	Orientations

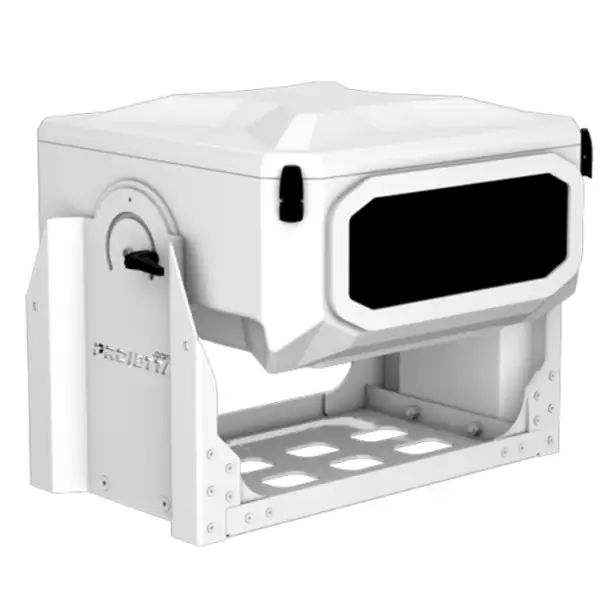

F6	17.7 × 7.9 × 14.2	66.1	50 / 0.2	330 / 1.5	Landscape

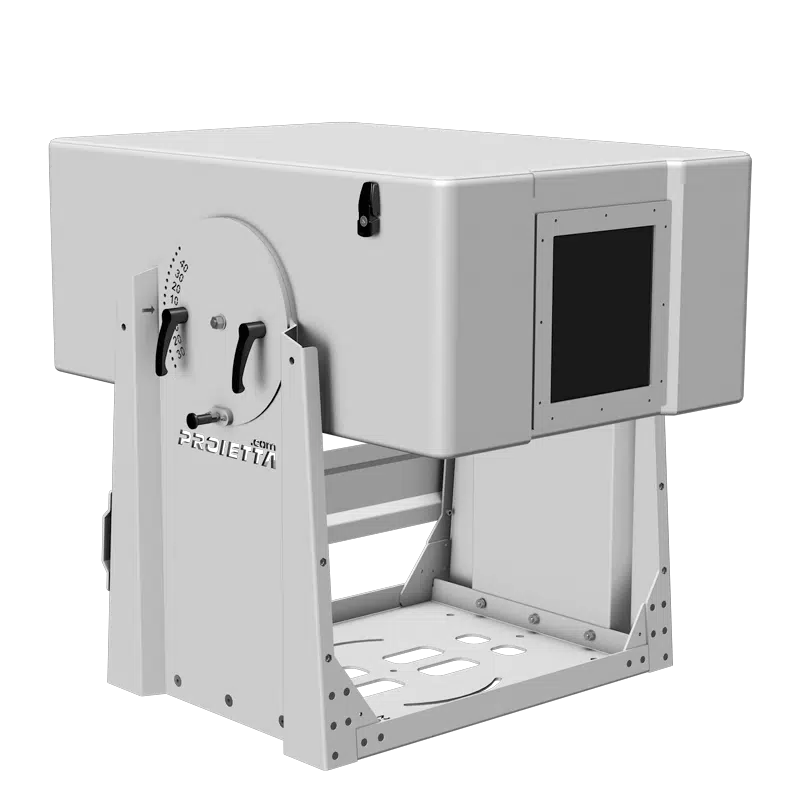

F20	21.7 × 13.8 × 26.4	143.3	210 / 0.9	420 / 1.84	Landscape

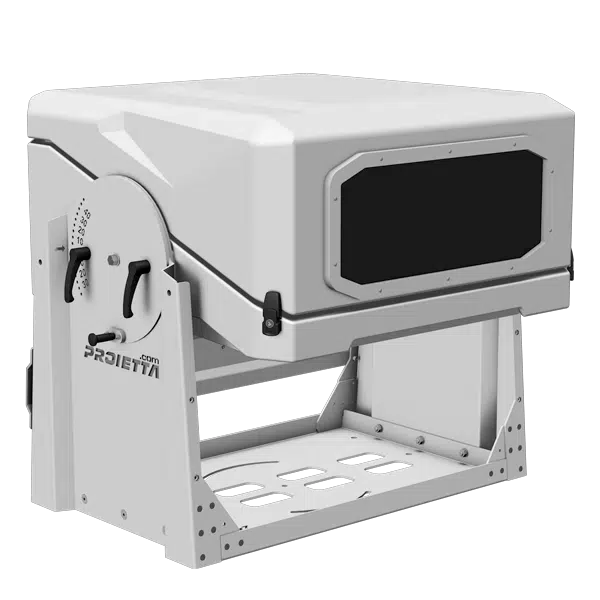

F24	25.6 × 11.8 × 22.4	176.4	210 / 0.9	420 / 1.84	Landscape

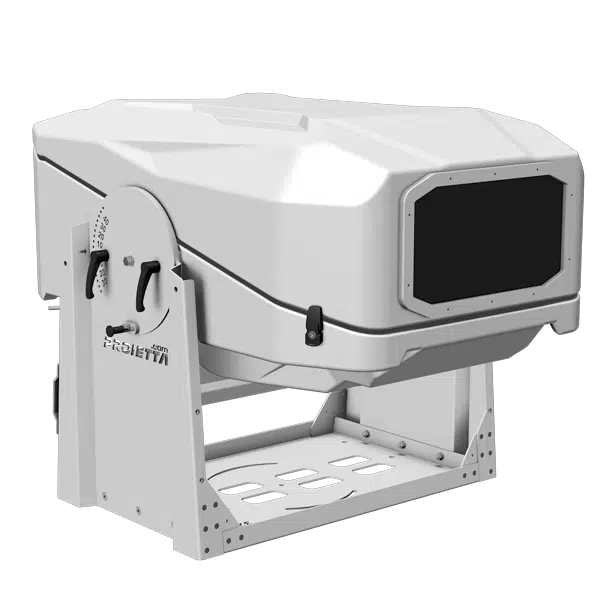

F32	25.6 × 13.8 × 33.5	253.5	420 / 1.84	420 / 1.84	Landscape
F40	34.7 × 17.7 × 49.2	374.8	420 / 1.84	420 / 1.84	Landscape
F50	34.7 × 25.6 × 49.2	474.0	420 / 1.84	420 / 1.84	Landscape / Stack
F70	42.5 × 25.6 × 49.2	474.0	630 / 2.76	420 / 1.84	Landscape

Model Lineup — X2 (Stackable / Multi-Portrait as noted)

X2 variants add stacking and multi-portrait capability where indicated. Note: F20-X2 supports Landscape / Portrait / Stack (no Multi-Portrait).

Model	Internal Volume (W×H×D, in)	Weight (lb)	Cooling Max (W/A)	Heat/Dehum Max (W/A)	Orientations

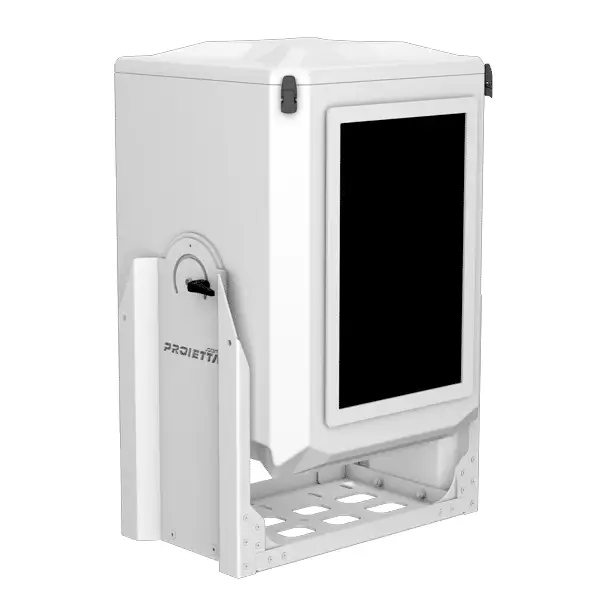

F6-X2	17.7 × 27.6 × 14.2	99.2	50 / 0.2	330 / 1.5	Landscape / Portrait / Stack / Multi-Portrait

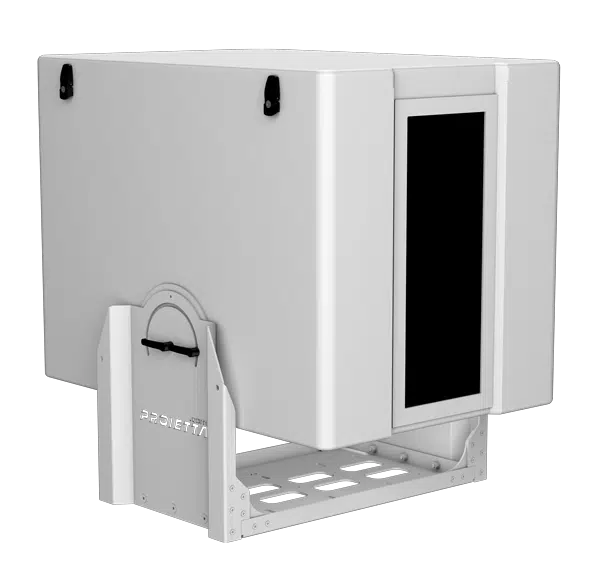

F20-X2	21.7 × 27.6 × 26.4	198.4	210 / 0.9	420 / 1.84	Landscape / Portrait / Stack (no Multi-Portrait)

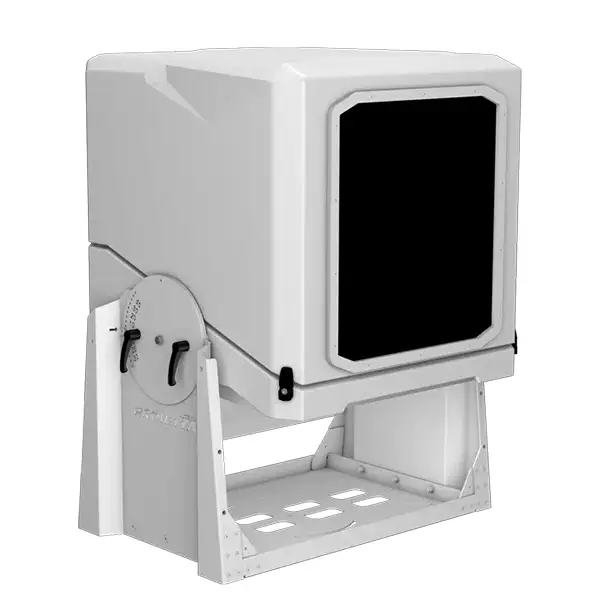

F24-X2	25.6 × 25.6 × 22.4	253.5	420 / 1.84	420 / 1.84	Landscape / Portrait / Stack / Multi-Portrait

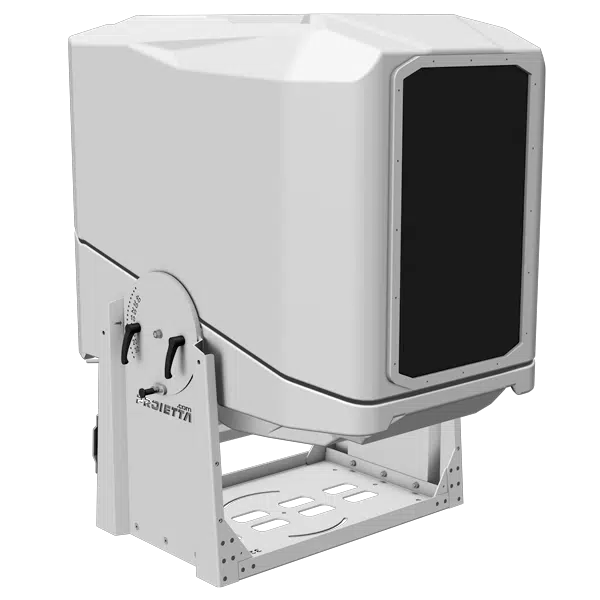

F32-X2	25.6 × 33.5 × 33.5	363.8	630 / 2.76	420 / 1.84	Landscape / Portrait / Stack / Multi-Portrait

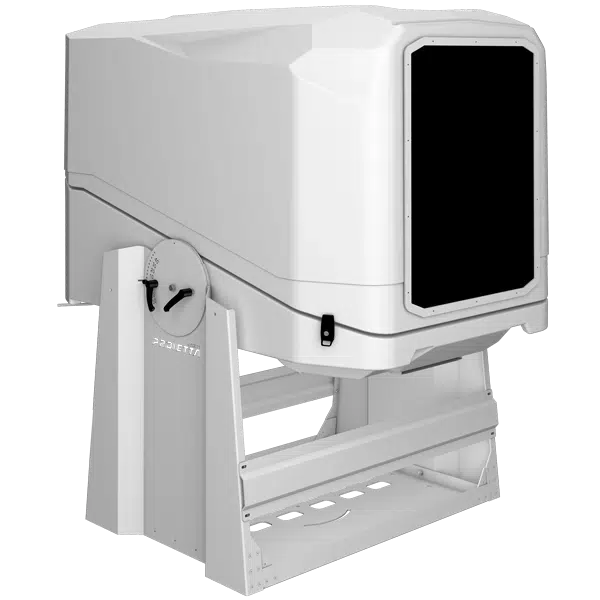

F50-X2	34.7 × 37.4 × 49.2	518.1	840 / 3.68	420 / 1.84	Landscape / Portrait / Stack / Multi-Portrait

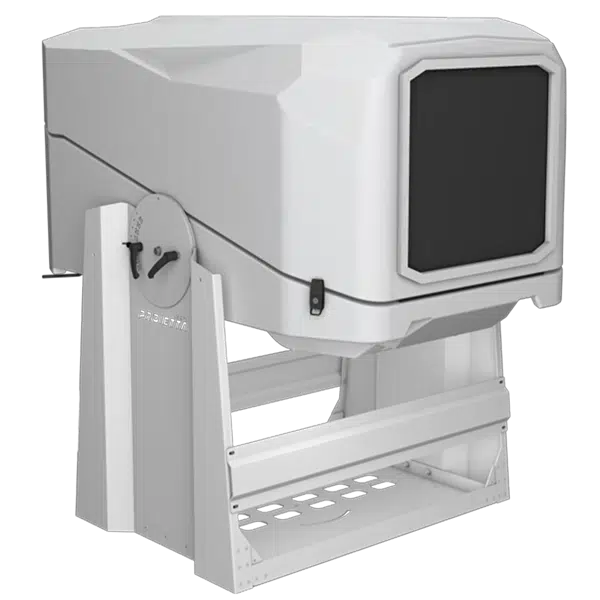

F70-X2	42.5 × 37.4 × 49.2	518.1	630 / 2.76	420 / 1.84	Landscape / Portrait / Stack / Multi-Portrait

Full technical details are in the spec sheet (PDF).

Why Specify Proietta (with U.S. Support)

Architectural aesthetics suitable for public-facing installs
Customization: finishes, sizing, UST lens accommodation
Ecosystem: mounts, poles, mirror kits; monitoring & optional Ethernet remote
Thermal: active ventilation; optional AC module with dust/sand filtration
Local support: North American sales, logistics & spec guidance by Gobo Projections

FAQ

Do you provide CAD/Revit?

CAD drawings are available on request. Revit/BIM models are available upon manufacturer confirmation.

UST lenses?

Yes. We accommodate ultra-short-throw lenses; please specify exact lens model for window and mirror kit configuration.

Hot climates / dust?

Specify the AC module for desert/coastal or otherwise extreme conditions. It increases cooling capacity and filters dust/sand.

Request CAD or a Quote

Tell us your projector model, lens (especially UST), orientation, and timeline.

Dealer / Integrator Program

Protected trade pricing, responsive engineering, and project-specific support.

Contact for Access

Which Enclosure Is Right For Me?

Outdoor Enclosure Finder — Gobo Projections

Outdoor Enclosure Finder

Select your projector, lens, and configuration — we'll recommend the right enclosure.

Brand

Lens throw

Quantity

Orientation

Lens depth estimates account for ~50mm of lens insertion into the projector body: standard +170mm net, long +330mm net, short +70mm net. Where two enclosures are shown, the smaller option depends on your specific lens seating depth — verify with Gobo Projections before ordering. (484) 548-5939 or dane@goboprojections.com.

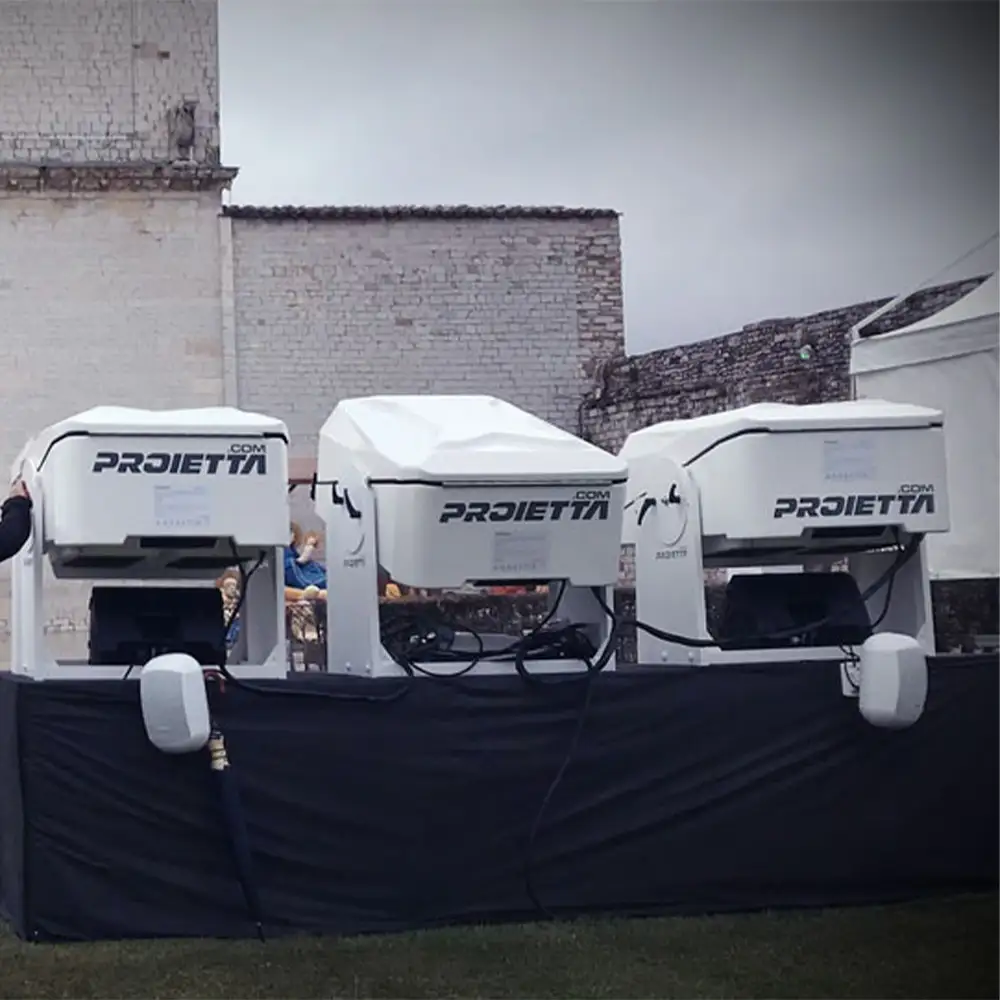

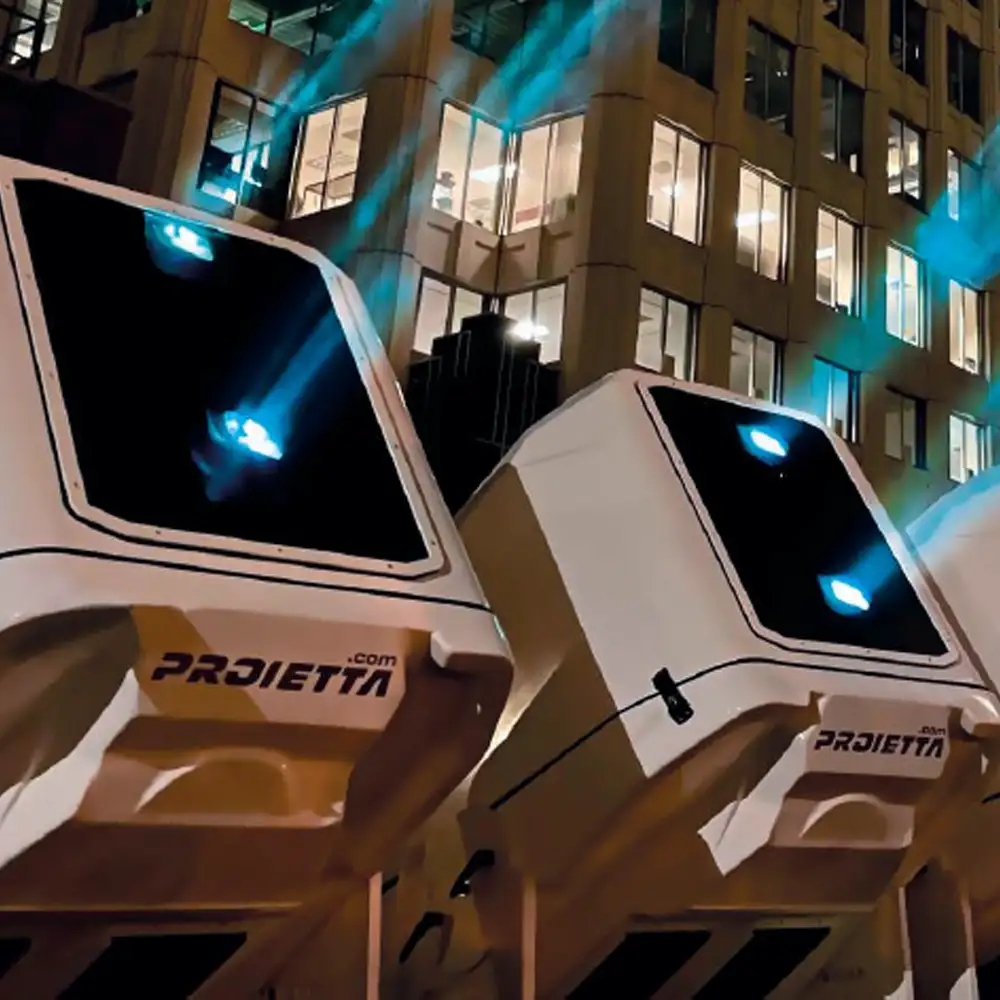

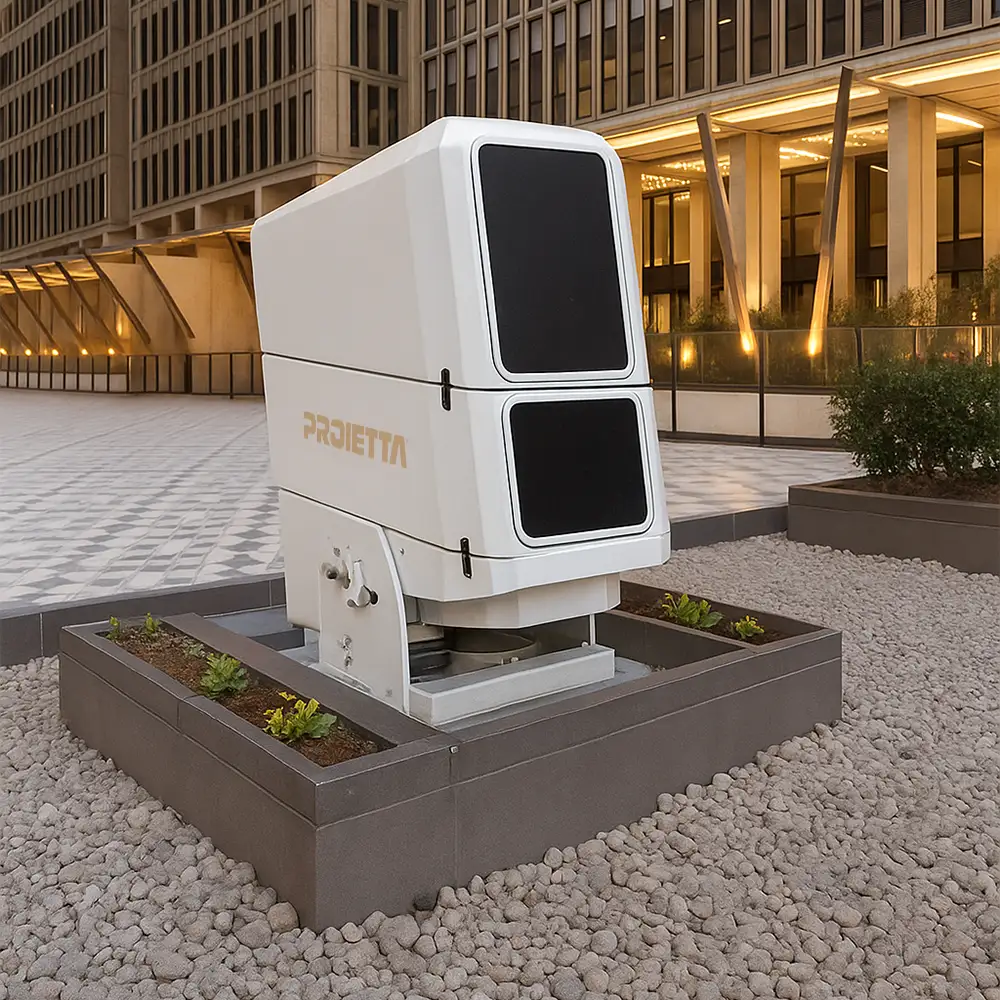

Real World Examples

Gobo Projections vs The Rest

A quick look at why integrators choose our enclosures over typical sheet-metal boxes.

Ours — Fiberglass, Built to Order

✅ Fiberglass composite — corrosion-proof, UV-stable, naturally insulated (cooler interiors in direct sun).
✅ Custom colors — any RAL color, brand-matched finishes.
✅ Optical windows — standard tempered; optional AR-coated low-iron glass for max brightness.
✅ Lens flexibility — UST windows/shrouds, long-throw extensions, custom cut-outs.
✅ Mount anywhere — pole, wall, or structure mount options; engineered brackets available. (Pole must be rated for combined projector + enclosure weight.)
✅ Thermal management — filtered airflow, heat & humidity control; optional AC cooler / sand-storm kit.
✅ Smart monitoring — Bluetooth app for temperature, humidity, fan status; PC monitoring option.
✅ Integrator add-ons — stacking frames, mirror kit (floor projection), sun hoods, positive-pressure filtration.
✅ Faster customization — made-to-order dimensions for tricky installs.

Them — Typical Sheet-Metal Boxes

⚠️ Sheet metal construction — heavier, conducts heat; paint can chip, risk of corrosion in coastal/humid sites.
⚠️ Limited finishes — usually 1–2 colors; branding upcharges and longer lead times.
⚠️ Fixed window formats — less friendly to UST or unusual lens protrusions.
⚠️ Thermal soak — metal absorbs/radiates heat quickly; interior temps can spike in sun.
⚠️ Rigid SKUs — fewer made-to-order dimensions for tight spaces.
⚠️ Accessories vary — stacking/mirror kits and advanced filtration may be limited or premium-priced.
⚠️ Monitoring systems — often proprietary and complex for simple projects.
⚠️ Price elasticity — less room for dealer and volume discounts.

Custom RAL Colors

AR-Coated Optical Glass

UST & Long-Throw Support

App & PC Monitoring

Get a Custom Spec & Dealer Pricing

Pole mounts available—pole must be rated for combined projector + enclosure weight.

Applications of Outdoor Projector Enclosures

Outdoor Projector Enclosures are ideal for a variety of applications, including:

Video Mapping Projects: Create stunning, large-scale projections on buildings, landscapes, or other surfaces without worrying about environmental factors affecting your projector.
Corporate Events: Ensure seamless presentations and visual displays during outdoor conferences, product launches, and other events.
Advertising Displays: Deliver vibrant, eye-catching visuals for outdoor advertising campaigns, day or night.
Architectural Projections: Showcase artistic or informational projections on monuments, bridges, and other structures.
Permanent Installations: Safeguard projectors used in theme parks, museums, and other long-term outdoor setups.

The Benefits of Choosing Gobo Projections Enclosures

Reliability: Our enclosures are engineered to provide long-lasting protection, ensuring that your projector performs optimally, no matter the conditions.
Ease of Use: Designed for straightforward installation and maintenance, our enclosures simplify outdoor projector setups.
Cost-Effective: By protecting your projector from damage, our enclosures save you money on repairs and replacements over time.
Customizable: With adaptable sizes and designs, our enclosures can accommodate any projector model and fit seamlessly into your setup.
Stylish Design: Our enclosures are not only functional but also visually appealing, complementing the aesthetics of any installation.

Compatibility with All Major Projector Brands

Our outdoor projector enclosures are designed to fit a wide range of projector models and brands, including but not limited to:
